Waveguide Accessories

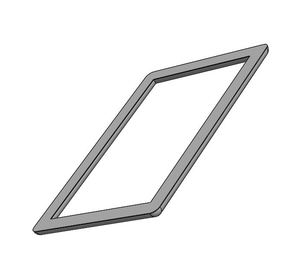

EMI/RFI Gaskets

Space Machine offers a standard product line of EMI/RFI gaskets covering waveguide sizes from WR28 thru WR650. EMI/RFI gaskets are conductive and are die cut from a silver impregnated elastomer. The standard gaskets are made to fit UG, CPR, and CMR flange types. However, additional sizes and configurations are available upon request. Space Machine EMI/RFI gaskets are made from conductive silicone elastomer with either Silver/Aluminum or Silver/ Copper fillers ( meets MIL-83528 Type B or K). These materials have very good shielding properties and conductivity, excellent sealing at temperature extremes, and have a long shelf life. See appendix P for Physical Properties and Temperature Range.

Download Data Sheet

Flanges

Space Machine offers a standard product line of flanges covering waveguide sizes WR10 thru WR650. Additional material, sizes and configurations are available upon request.

Download Data Sheet

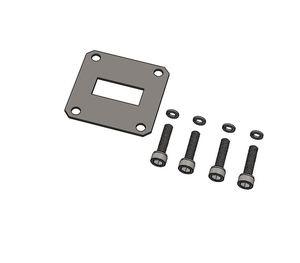

Gasket Kits

Space Machine offers a standard product line of gasket kits available for all gasket types covering waveguide sizes WR28 thru WR650. Gasket Kit includes gaskets, screws, nuts and washers. Additional sizes and configurations are available upon request.

Download Data Sheet

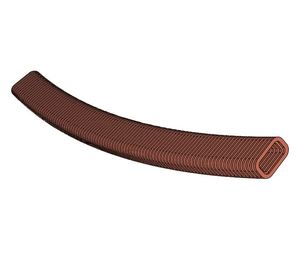

Raw Seamless Flexible

Space Machine offers a standard product line of raw seamless flex ranging in size from WR28 thru WR284.

Download Data Sheet

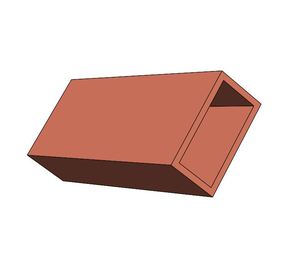

Raw Tubing

Space Machine offers a standard product line of raw waveguide tubing ranging in size from WR10 thru WR650. These include both standard wall and heavy wall thickness and reduced height. Other configurations can be made to order.

Download Data Sheet

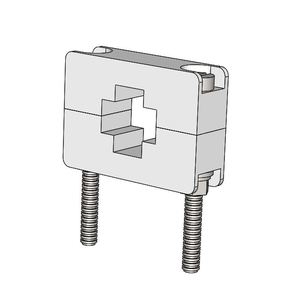

Standoffs

Space Machine offers a standard product line of waveguide standoffs with hardware for all waveguide sizes. These waveguide clamps are used to hold waveguides in either “E” or “H” plane and furnished with stainless steel mounting hardware. Additional sizes, including Double Ridge Waveguides, are available upon request.

Download Data Sheet

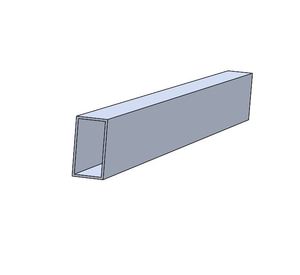

Thin Wall Raw Tubing

Space Machine offers a standard product line of raw aluminum waveguide thin wall tubing covering the following waveguide sizes: WR75, WR90, WR112 or WR137.

Download Data Sheet

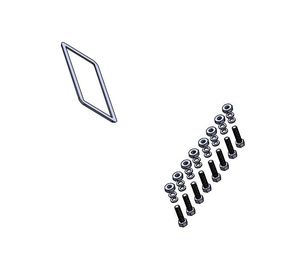

Waveguide Gaskets

Space Machine offers a standard product line of gasket kits available for all gasket types covering waveguide sizes WR28 thru WR650. Gasket Kit includes gaskets, screws, nuts and washers. Additional sizes and configurations are available upon request.

Download Data Sheet
