Transitions
Rectangular to Double Ridge Transitions
Space Machine offers a standard product line of rectangular to double ridge waveguide transitions. Please see above chart to select transition requirements. VSWR is 1.10:1 typical in the overlapping frequency bands. Additional sizes and configurations are available upon request.

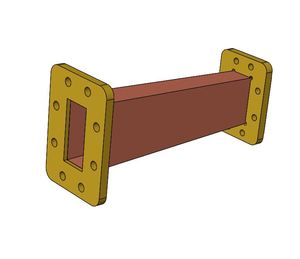

Rectangular to Rectangular Transitions
Space Machine offers a standard product line of transitions covering waveguide sizes WR10 thru WR975. VSWR is 1.05 typical in the overlapping frequency bands. Additional sizes and configurations are available upon request.
