Couplers

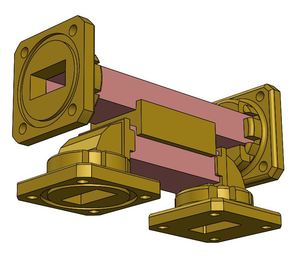

Branch Guide Couplers

Space Machine custom fabricates a standard product line of branch guide couplers covering waveguide sizes WR62 thru WR284.  Inherently full band coupling is not very flat, but coupling over 25% bandwidth is held to ±0.5dB.  Directivity is 20dB minimum.  Additional sizes & configurations are available upon request.

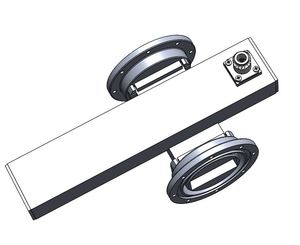

Cross Guide Couplers

Space Machine custom fabricates a standard product line of cross guide couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically + 1dB over the full waveguide band. Directivity is 20dB minimum. Additional sizes and configurations are available upon request.

Download Data Sheet

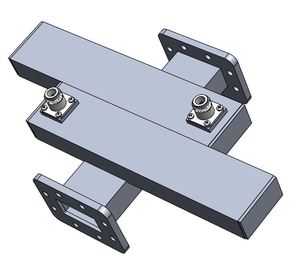

Dual Cross Guide Couplers

Space Machine custom fabricates a standard product line of dual cross guide couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically + 2dB over the full waveguide band. Directivity is 20dB minimum. Additional sizes and configurations are available upon request. See next page for standard dimensions.

Download Data Sheet

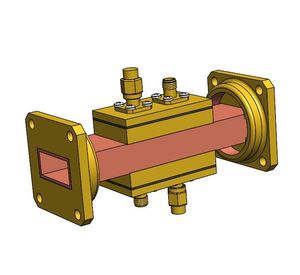

Dual Loop Couplers

Space Machine offers a standard product line of power samplers covering waveguide sizes WR28 thru WR430. These devices are used for monitoring power when directivity is not a concern. Main line VSWR is held to 1.10:1 maximum over the full waveguide band. While coupling variation is held to + 1dB. Additional sizes and configurations are available upon request.

Download Data Sheet

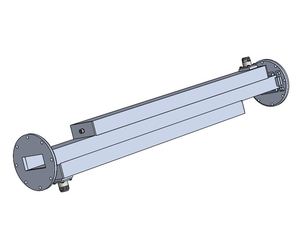

Dual Topwall Couplers

Space Machine custom fabricates a standard product line of dual topwall couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically ± 0.5dB over the full waveguide band. Directivity is 35dB minimum. Additional sizes and configurations are available upon request. See next page for standard dimensions.

Download Data Sheet

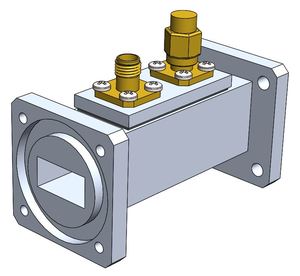

Loop Couplers

Space Machine custom fabricates a standard product line of loop couplers covering waveguide sizes WR62 thru WR430. These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 18dB minimum. Main arm VSWR is 1.08:1 and secondary arm VSWR is 1.3:1.

Download Data Sheet

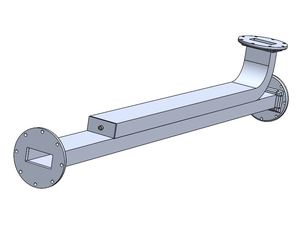

Topwall Couplers

Space Machine custom fabricates a standard product line of topwall couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically ± 0.5dB over the full waveguide band. Directivity is 35dB minimum. Additional sizes and configurations are available upon request.

Download Data Sheet

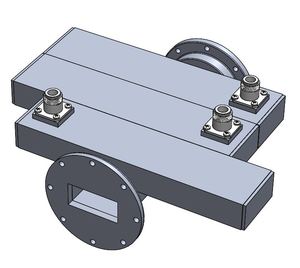

Tri (3) Cross Guide Couplers
