Attenuators

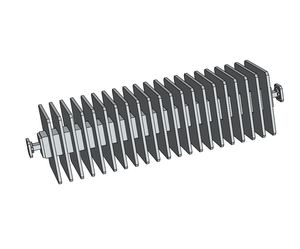

High Power Fixed

 Space Machine offers a standard product line of high power fixed attenuators covering waveguide sizes WR28 thru WR284. VSWR is 1.15:1. Flatness is held to + 1.0dB maximum over the full waveguide band.

Download Data Sheet

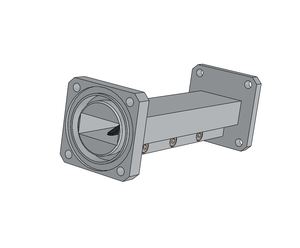

Low Power Fixed

Space Machine offers a standard product line of low power fixed attenuators covering waveguide sizes WR28 thru WR284. VSWR is held to 1.10:1 while flatness is held to + 1.5dB over the full waveguide band. The maximum power rating for all sizes is 1 watt average.

Download Data Sheet

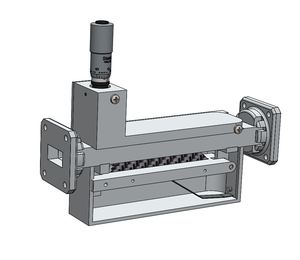

Low Power Variable

Space Machine offers a standard product line of low power variable attenuators covering waveguide sizes WR28 thru WR284. Attenuation will range from 0 – 30dB while flatness is held to + 1.5dB. VSWR is held to 1.10:1 maximum over the full waveguide band. Additional sizes and configurations are available upon request.

Download Data Sheet
