Power Samplers

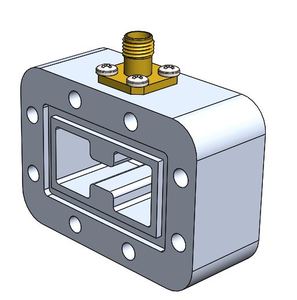

Power Flange Sampler

Space Machine offers a standard product line of double ridge power flange samplers covering waveguide sizes WRD180 thru WRD200. These devices are used for monitoring power when directivity is not a concern. Main line VSWR is held to 1.15:1 maximum over the full waveguide band, while coupling is held to + 1dB. Additional sizes and configurations are available upon request. * When a Type N connector is required, thickness will be 1.00”.

Download Data Sheet

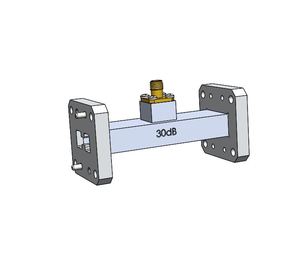

Power Sampler

Space Machine offers a standard product line of double ridge power samplers covering waveguide sizes WRD180 thru WRD200. These devices are used for monitoring power when directivity is not a concern. Main line VSWR is held to 1.15:1 maximum over the full waveguide band, while coupling is held to + 1dB. Additional sizes and configurations are available upon request.

Download Data Sheet
