Assemblies Double Ridge

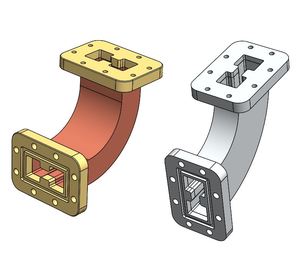

Formed E and H Bend Assemblies

Space Machine will custom fabricate double ridge formed E and H plane bend assemblies covering waveguide sizes WRD180 thru WRD200. Degree of bend, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Download Data Sheet

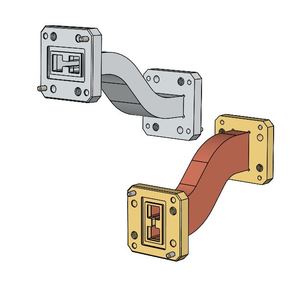

Formed E and H Plane Offset Assemblies

Space Machine will custom fabricate double ridge formed E and H plane offset assemblies covering waveguide sizes WRD180 thru WRD200. Offset distance, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Download Data Sheet

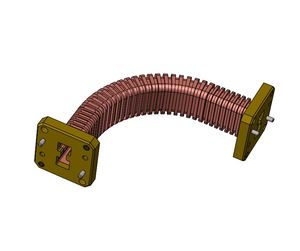

Specialized Bends – Flexible

Space Machine can customize any double ridge waveguide bend assembly that you require. Please contact the company with drawings, sketch or word description for a quotation.

Download Data Sheet

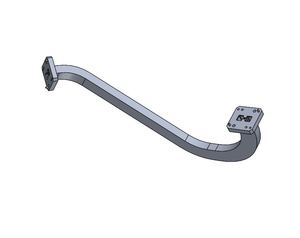

Specialized Bends – Rigid

Space Machine can customize any double ridge waveguide bend assembly that you require. Please contact the company with drawings, sketch or word description for a quotation.

Download Data Sheet

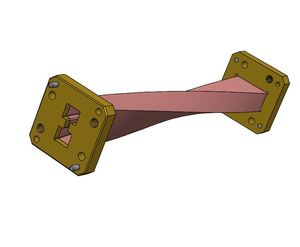

Twist Assemblies

Space Machine will custom fabricate double ridge twist sections covering the waveguide sizes WRD180 to WRD200. Degree of twist, length and flange types made to customer specifications. VSWR is less than 1.15:1 over the full waveguide band. SME standard twist direction is clockwise*. To order counterclockwise** twist add a dash and “CCT” after Part Number. Example: 90-DTW650-6.0A0102-CP-CCT * “Clockwise Twist” - when the assembly is held vertically and viewed from above, the twist of the tubing progresses in a clockwise direction from top to bottom. ** “Counterclockwise Twist” - when the assembly is held vertically and viewed from above, the twist of the tubing progresses in a counterclockwise direction from top to bottom.

Download Data Sheet
